DN32-DN355 SDR11 SDR17.6 PE Spigot End Cap Polyethylene Pipe Fittings

Product Categories
Cangzhou Mingzhu Plastic Co., Ltd.
Contact Now

DN32-DN355 SDR11 SDR17.6 PE Spigot End Cap Polyethylene Pipe Fittings

Brand Name : LUTONG

Model Number : DN63-DN355

Certification : BSI

Place of Origin : CHINA

MOQ : NEGOTIATION

Price : NEGOTIATION

Packaging Details : CARTON

Material : PE100

Color : Black

Application : Gas pipe, water pipe

Welding mode : Butt fusion

Size : DN32 - DN355

SDR value : SDR11, SDR17, SDR17.6

Delivery Time : NEGOTIATION

Payment Terms : NEGOTIATION

Supply Ability : 10000 PER MONTH

Contact Now

PE SPIGOT END CAP DN32 - DN355 POLYETHYLENE PIPE FITTINGS SDR11, SDR17, SDR17.6

PE End Cap standard EN1555.3/EN12201.3/ ISO8085/ ISO4427.3;

PE100 SDR11 End Cap applied for gas pipeline pressure reach 0.7Mpa, and water-supply pipeline pressure reach 1,6Mpa;

PE80 SDR11 End Cap applied for gas pipeline pressure reach 0.5Mpa. and water-supply pipeline pressure reach 1.25Mpa;

PE 100 SDR17.6 and SDR17 End Cap applied for gas pipeline pressure reach 0.4Mpa, and water-supply pipeline pressure reach 1 .OMpa;

PE80 SDR 17.6 and SDR17 End Cap applied for gas pipeline pressure reach 0.3Mpa, and water-supply pipeline pressure reach 0.8Mpa;

The length of the welding pipe section can be lengthened according to the requirement.

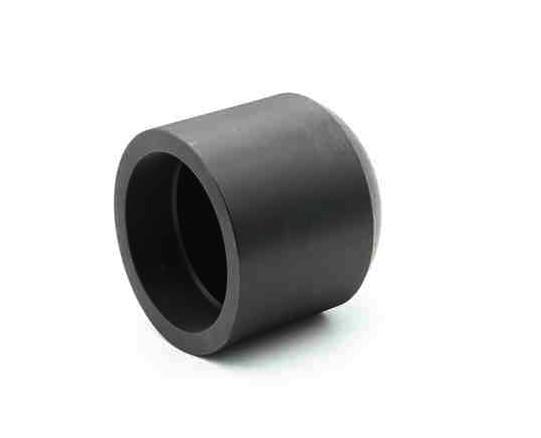

DN32-DN355 SDR11 SDR17.6 PE Spigot End Cap Polyethylene Pipe Fittings

d mm e(SDR11) mm e(SDR17) mm e(SDR17.6) mm L1 mm L mm
32 3.0 - - 44 60
40 3.7 - - 49 65
50 4.6 - - 55 75
63 5.8 - - 67 90
75 6.8 4.5 4.3 70 105
90 8.2 5.4 5.2 79 124
110 10.0 6.6 6.3 82 137
125 11.4 7.4 7.1 87 149
140 12.7 8.3 8.0 92 162
160 14.6 9.5 9.1 98 178
180 16.4 10.7 10.3 105 195
200 18.2 11.9 11.4 112 212
225 20.5 13.4 12.8 120 232
250 22.7 14.8 14.2 130 255
315 28.6 18.7 17.9 150 307
355 32.2 21.1 20.2 165 342
